Products

Drawn coils – Drawn bars

PRODUCTION RANGE
	ROUND	tolerance*	SQUARE	HEXAGON	tollerance*
DRAWN COILS	1,7÷22 mm	h9 – h10 – h11	4÷22 mm	4÷22 mm	h11
DRAWN BARS	2÷90 mm	h9 – h10 – h11	4÷60 mm	4÷70 mm	h11

*special tolerances upon request

SURFACE SOUNDNESS: (with the exception of cold drawn products in coils)
Upon request it is possible to carry out the magnetic non-destructive test by induction current.

OFFLINE TESTS IN THE SIZE RANGE
	ROUND	HEXAGON
FIXED BOBBIN	(8÷80) mm	(10÷70) mm
ROTATING HEAD	(8÷100) mm	/

ON-LINE TESTS IN THE SIZE RANGE
	ROUND	HEZAGON
FIXED BOBBIN	(4÷46) mm	(8÷42) mm
ROTATING HEAD	/	/

Delivery condition:	as rolled
	soft annealed ( +A )
	spheroidized annealed ( +AC )
Finish:	drawn ( +C )

Processing 1

Processing 2

Processing 3

Processing 4

Processing 5

Processing 6

Processing 7

Processing 8

Processing 9

Processing 10

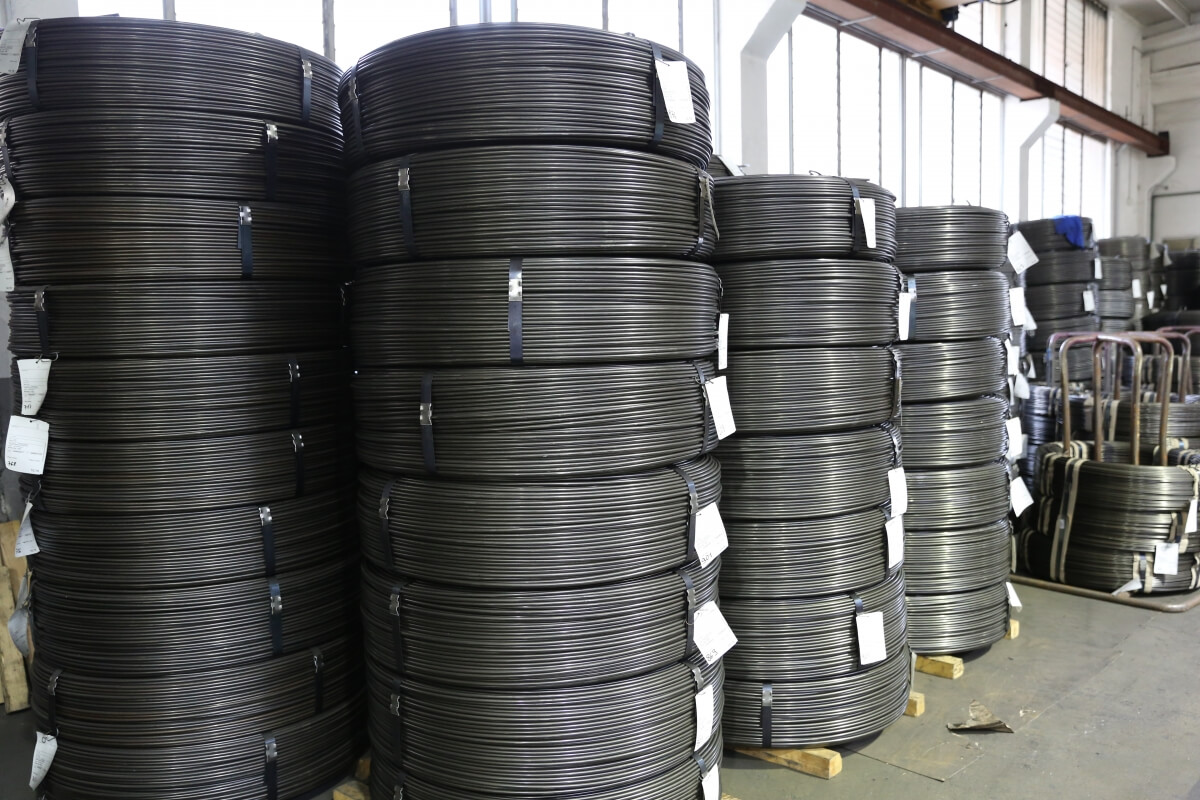

Coils 1

Coils 2

Coils 3

Coils 4

Round bars 1

Round bars 2

Round bars 3

Round bars 4

Round bars 5

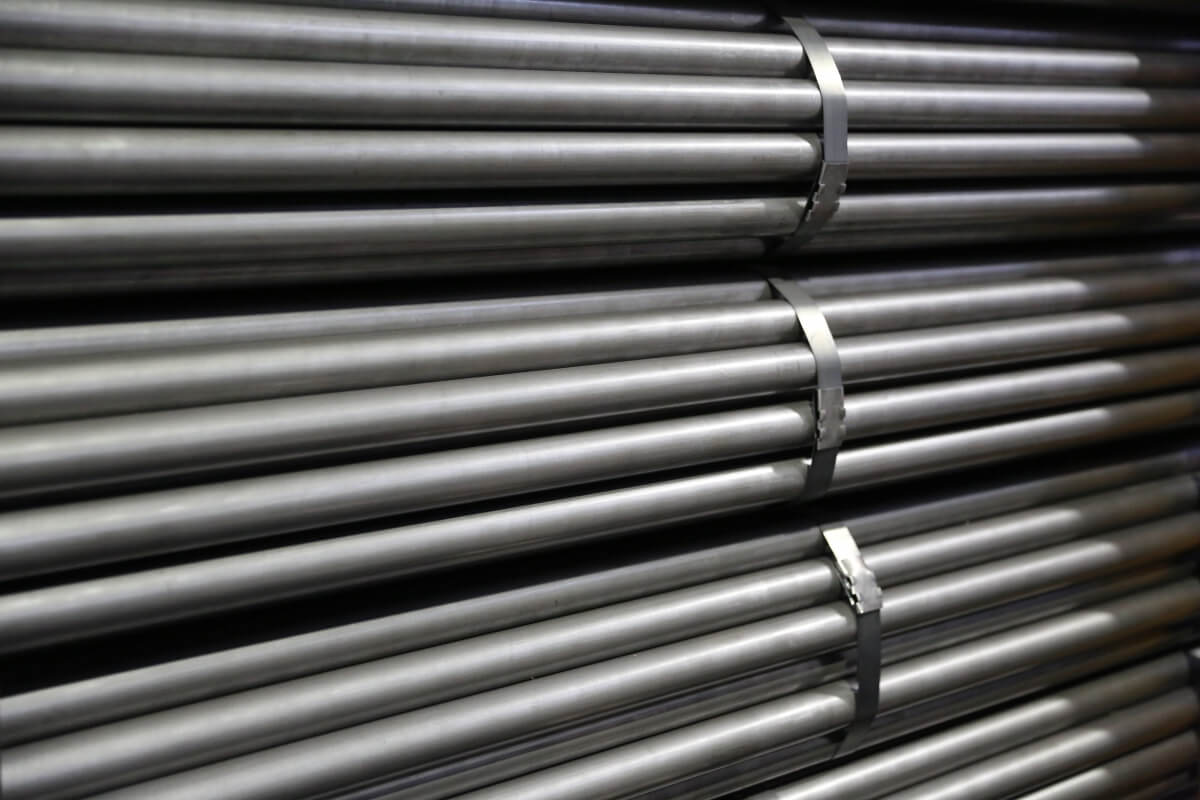

Round bars 6

Hexagonal bars 1

Hexagonal bars 2

Hexagonal bars 3

Square bars 1

Square bars 2

Square bars 3

Square bars 4

Square bars 5

Download the full catalogue (PDF, 4.3 MB)
